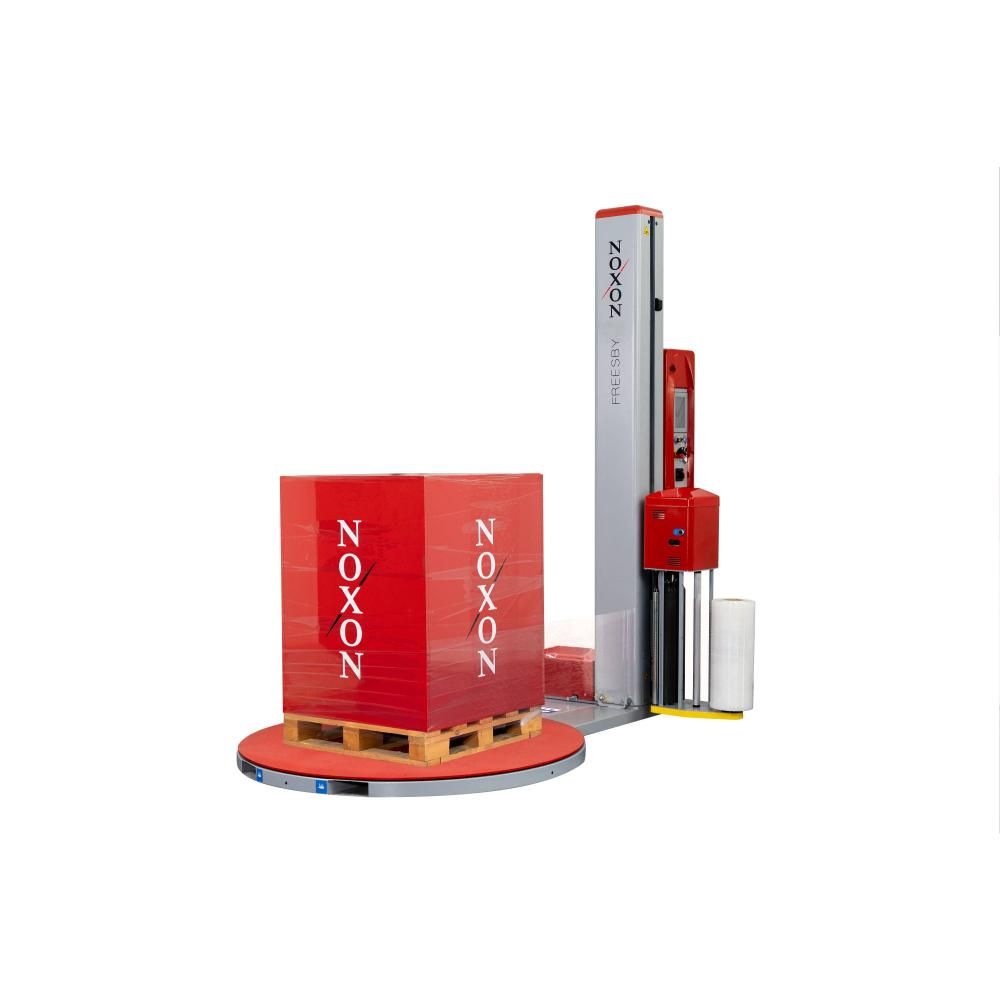

NOXON FREESBY X5 312 TURNTABLE PALLET WRAPPING MACHINE

Product Code

518941

The FREESBY X5 312 is a semi-automatic turntable stretch film pallet wrapper equipped with a motorized power pre-stretch system, offering a 250% pre-stretch capability. Designed for reliability and productivity, it features user-friendly controls and customizable wrapping programs to ensure efficient and secure pallet stabilisation.

Technical Features:

Carriage Type: Motorized power pre-stretch system with adjustable film stretch from the control panel.
Pre-Stretch Capability: 250%.
Power Supply Voltage: 230V 1 PH (±10%) 50/60 Hz.
Installed Power: 1.9 kW.
Carriage Up-Down Speed: 1.4 to 4 m/min.
Table Rotation Speed: 5 to 12 rpm.
Plate Diameter: Standard Ø1650 mm; optional Ø1800 mm.
Plate Capacity: 2000 kg.
Standard Features:
- Synchronized stop.
- Progressive start-up.
- Photocell delay.
- Height detection photocell.
- Front and rear forklift capability.

Discover Huge Potential Savings Online, Using our Simple Comparison Tool

Quick Add

+1 Pack of 1 +1 Pallet of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

NOXON FREESBY X5 312 TURNTABLE PALLET WRAPPING MACHINE

The FREESBY X5 312 represents a new generation of turntable stretch wrapping machines, redefining industry standards for reliability and productivity. This model is equipped with a motorized power pre-stretch system that achieves a 250% pre-stretch ratio, optimizing film usage and ensuring superior load stability. The user-friendly X5 control panel allows operators to adjust film tension and customize wrapping programs directly from the interface, facilitating precise control over the wrapping process. Designed with a focus on ease of use, the FREESBY X5 312 ensures stable and secure wrapping of various load types, making it an ideal choice for businesses seeking efficiency and adaptability in their packaging operations.

Technical Features:

Carriage Type: Motorized power pre-stretch system with adjustable film stretch from the control panel.
Pre-Stretch Capability: 250%.
Power Supply Voltage: 230V 1 PH (±10%) 50/60 Hz.
Installed Power: 1.9 kW.
Carriage Up-Down Speed: 1.4 to 4 m/min.
Table Rotation Speed: 5 to 12 rpm.
Plate Diameter: Standard Ø1650 mm; optional Ø1800 mm.
Plate Capacity: 2000 kg.
Standard Features:Synchronized stop.
Progressive start-up.
Photocell delay.
Height detection photocell.
Front and rear forklift capability.

These features make the FREESBY X5 312 a versatile and efficient solution for various pallet wrapping needs.
