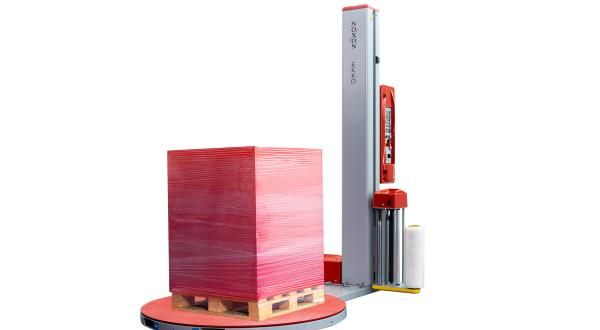

NOXON EKKO 310 TURNTABLE PALLET WRAPPING MACHINE
The EKKO is a semi-automatic turntable wrapping machine designed for securing pallet loads with stretch film. Combining advanced packaging technology with a sleek design, it ensures maximum safety and reliability for various load types.
The EKKO represents Noxon's inaugural venture into vertical turntable wrappers, merging cutting-edge packaging technologies with an innovative and minimalist design. Engineered to meet the most stringent international safety standards, the EKKO focuses on precise control of acceleration and deceleration phases, ensuring optimal handling of unstable or delicate loads. Equipped with the new "X3" control panel and an updated carriage system, the EKKO offers simplicity, robustness, and reliability.
Common Specifications:
- Power Supply: 230V 1 PH (±10%) 50/60 Hz.
- Installed Power: Ranges from 1.2 kW to 1.9 kW depending on the model.
- Carriage Up-Down Speed: 1.4 to 4 m/min.
- Table Rotation Speed: 5 to 12 rpm.
- Plate Diameter: Standard Ø 1500 mm; optional Ø 1650 mm.
- Plate Capacity: 2000 kg standard.
- Minimum Product Dimensions: 500 x 500 x 500 mm.
- Maximum Product Dimensions: Standard 800 x 1200 x 2200 mm; optional 1000 x 1200 x 2400 mm.
- Film Reel Specifications: Max external diameter 300 mm, internal diameter 76 mm, reel height 500 mm, film thickness 17 to 35 μm, max reel weight 20 kg.
