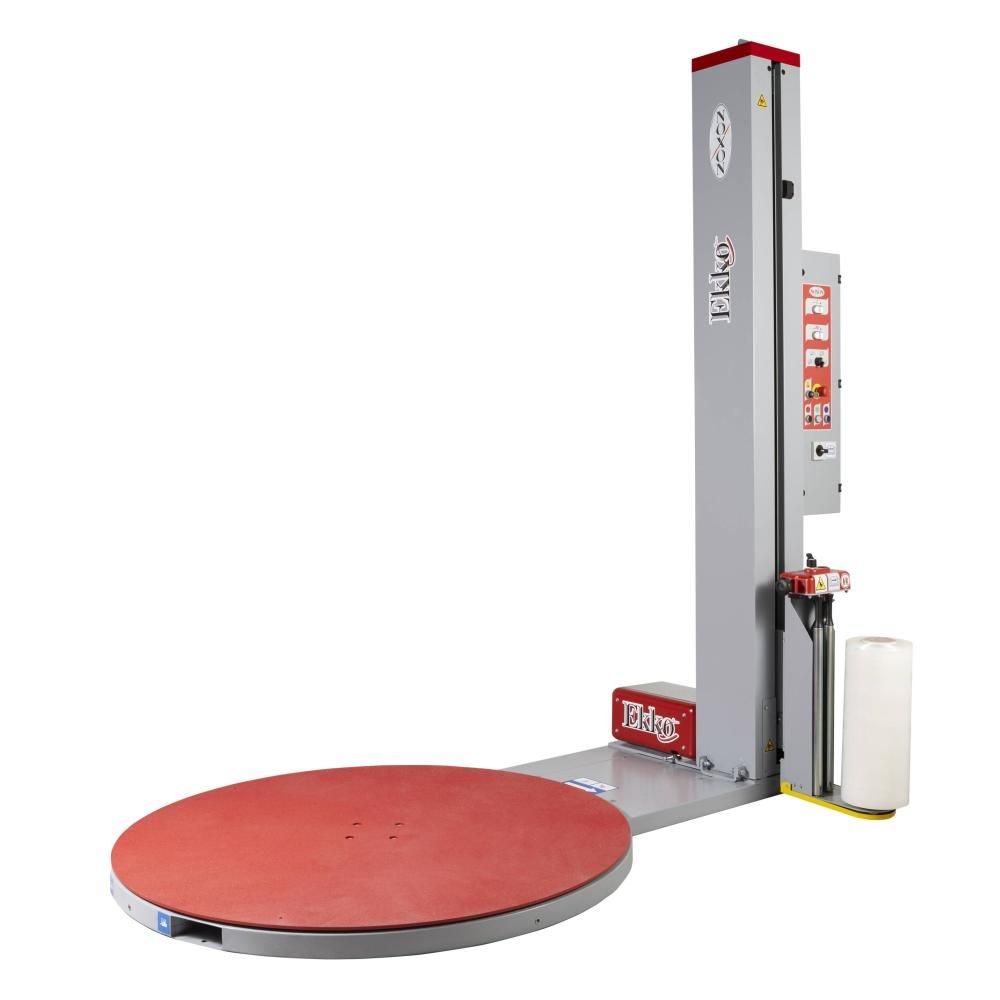

NOXON EKKO 201 TURNTABLE PALLET WRAPPING MACHINE
Product Code
518935
The EKKO 201 is a semi-automatic turntable wrapping machine designed to combine advanced packaging technologies with a streamlined design, adhering to stringent international safety standards. It ensures maximum safety when wrapping unstable or delicate loads, making it an ideal choice for businesses seeking reliability and productivity.
Technical Features:
- Carriage Type: Mechanical brake with manual film stretch adjustment.
- Pre-Stretch Capability: Not applicable.
- Power Supply Voltage: 230V 1 PH (±10%) 50/60 Hz.
- Installed Power: 1.2 kW.
- Carriage Up-Down Speed: 1.4 to 4 m/min.
- Table Rotation Speed: 5 to 12 rpm.
- Plate Diameter: Standard Ø1500 mm; optional Ø1650 mm.
- Plate Capacity: 2000 kg standard.
- Minimum Product Dimensions: 500 x 500 x 500 mm.
- Maximum Product Dimensions: Standard 800 x 1200 x 2200 mm; optional 1000 x 1200 x 2400 mm.
- Film Reel Specifications: Maximum external diameter 300 mm, internal diameter 76 mm, reel height 500 mm, film thickness 17 to 35 μm, maximum reel weight 20 kg.
