Lantech ProfitPack 1 Case Erector and Sealer

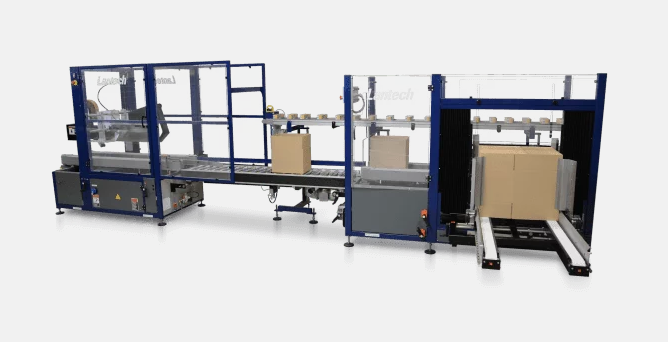

Lantech ProfitPack 1 Case Erector and Sealer

Product Code

The ProfitPack is perfect for situations where conventional pick and place automation often doesn’t work well or is prohibitively expensive.

On demand case presentation.
Precise case positioning to hand packing station.
Adjustable height product conveyor belt provides an ergonomic work environment.

Quick Add

+1 Pallet of 0.1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Description

Specifications

CRITERIA PROFITPACK 1 PROFITPACK 2
Speed 10 cases per minute 8 cases per minute

Minimum Case Outer Dimensions
200 mm L x 150 mm W x 150 mm C
(7 7/8” L x 5 7/8” W x 5 7/8” C)
200 mm L x 150 mm W x 250 mm C
(7 7/8” L x 5 7/8” W x 9 7/8” C)

Maximum Case Outer Dimensions
500 mm L x 350 mm W x 600 mm C
(19 5/8” L x 13 3/4” W x 23 5/8” C)
620 mm L x 450 mm W x 650 mm C
(24 3/8” L x 17 3/4” W x 25 5/8” C)
Case Type RSC, HSC, FEFCO 0200/0201 RSC, HSC, FEFCO 0200/0201
Flute Type B, C B, C
Wall Type Single Wall Single Wall

Standard Sealing Device Lantech® TH-Series Tape Head Lantech® TH-Series Tape Head
Dimensions - Machine
6050 mm L x 2430 mm W x 1600 mm H
(238 5/16” L x 95 3/4” W x 63” H) *Profi tPack 300 Double StaƟ on
7050 mm L x 2430 mm W x 1600 mm H
(277 11/16” L x 95 3/4” W x 63” H)
6200 mm L x 2540 mm W x 1600 mm H
(244 3/16” L x 100 1/8” W x 63” H)
*Profi tPack 400 Double StaƟ on 7200 mm L x 2540 mm W x 2500 mm H
(283 5/8” L x 100 1/8” W x 63” H)
Weight - Machine ±950 kg (±1155lb) ±1000 kg (±1265lb)
Electrical Service Choices 3L-PE-400V-50Hz-Neutral
230V, 3-ph, 60Hz, Wye w/Ground
3L-PE-400V-50Hz-Neutral
230V, 3-ph, 60Hz, Wye w/Ground
PneumaƟ cs 6 Bar (80 PSI) 6 Bar (80 PSI)
