Lantech CI-2000 Case Erector

Product Code
Lantech CI-2000 Case Erector-1

The CI2000 is ideally suited for packaging lines with limited space or where packaging lines are positioned in close proximity to each other.

  • Inline blank magazine guarantees a narrow machine width.
  • Configurable for large case sizes.
  • Communicates easily with other machines in the packaging line.
Request a Quote
Request a Quote

Please note: This is a Direct Delivery Product

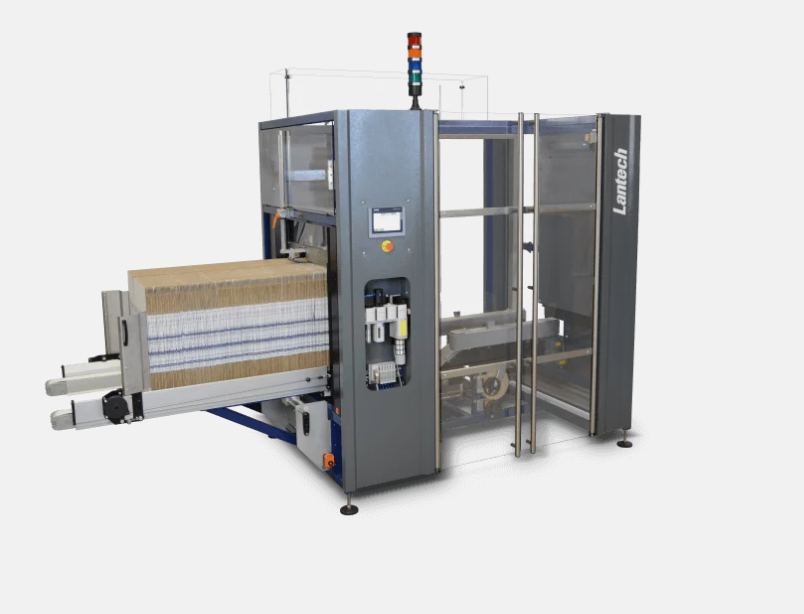

main product photo
Product Description

Specifications

CRITERIA CI-1000 TAPE CI-2000 TAPE CI-1000 HOTMELT CI-2000 HOTMELT
Speed 10-25 cases per minute
Options and application can change the speed
8-18 cases per minute
Options and application can change the speed
10-25 cases per minute
Options and application can change the speed
8-18 cases per minute
Options and application can change the speed

Minimum Case Outer Dimensions
200 mm L x 150 mm W x 150 mm C
(7 7/8” L x 5 7/8” W x 5 7/8” C)
200 mm L x 150 mm W x 150 mm C
(7 7/8” L x 5 7/8” W x 5 7/8” C)
200 mm L x 150 mm W x 150 mm C
(7 7/8” L x 5 7/8” W x 5 7/8” C)
200 mm L x 150 mm W x 150 mm C
(7 7/8” L x 5 7/8” W x 5 7/8” C)

Maximum Case Outer Dimensions
500 mm L x 325 mm W x 520 mm C
(19 5/8” L x 12 3/4” W x 20 1/2” C)
620 mm L x 450 mm W x 650 mm C
(24 1/2” L x 17 3/4” W x 25 5/8” C)
500 mm L x 325 mm W x 520 mm C
(19 5/8” L x 12 3/4” W x 20 1/2” C)
620 mm L x 450 mm W x 650 mm C
(24 1/2” L x 17 3/4” W x 25 5/8” C)


Case Type RSC, HSC, FEFCO 0200/0201 RSC, HSC, FEFCO 0200/0201 RSC, HSC, FEFCO 0200/0201 RSC, HSC, FEFCO 0200/0201
Flute Type B, C, E B, C, E B, C, E B, C, E


Wall Type Single and Double Wall Single and Double Wall Single and Double Wall Single and Double Wall
Standard Sealing Device Lantech® TH-Series Tape Head Lantech® TH-Series Tape Head Robatech/Nordson Robatech/Nordson

Dimensions - Machine 3400 mm L x 1325 mm W x 2400 mm H
(133 7/8” L x 52 1/6” W x 94 1/2” H)
3580 mm L x 1570 mm W x 2400 mm H
(141” L x 61 4/5” W x 94 1/2” H)
3400 mm L x 1325 mm W x 2500 mm H
(133 7/8” L x 52 1/6” W x 98 2/5” H)
3580 mm L x 1570 mm W x 2500 mm H
(141” L x 61 4/5” W x 88 3/5” H)
Weight - Machine ±725 kg (±1600lb) ±825 kg (±1800lb) ±825 kg (±1800lb) ±925 kg (±2040lb)
Electrical Service Choices 3L-PE-400V-50Hz-Neutral
230V, 3-ph, 60Hz, Wye w/Ground
3L-PE-400V-50Hz-Neutral
230V, 3-ph, 60Hz, Wye w/Ground
3L-PE-400V-50Hz-Neutral
230V, 3-ph, 60Hz, Wye w/Ground
3L-PE-400V-50Hz-Neutral
230V, 3-ph, 60Hz, Wye w/Ground
PneumaƟ cs 6 Bar (80 PSI) 6 Bar (80 PSI) 6 Bar (80 PSI) 6 Bar (80 PSI)
